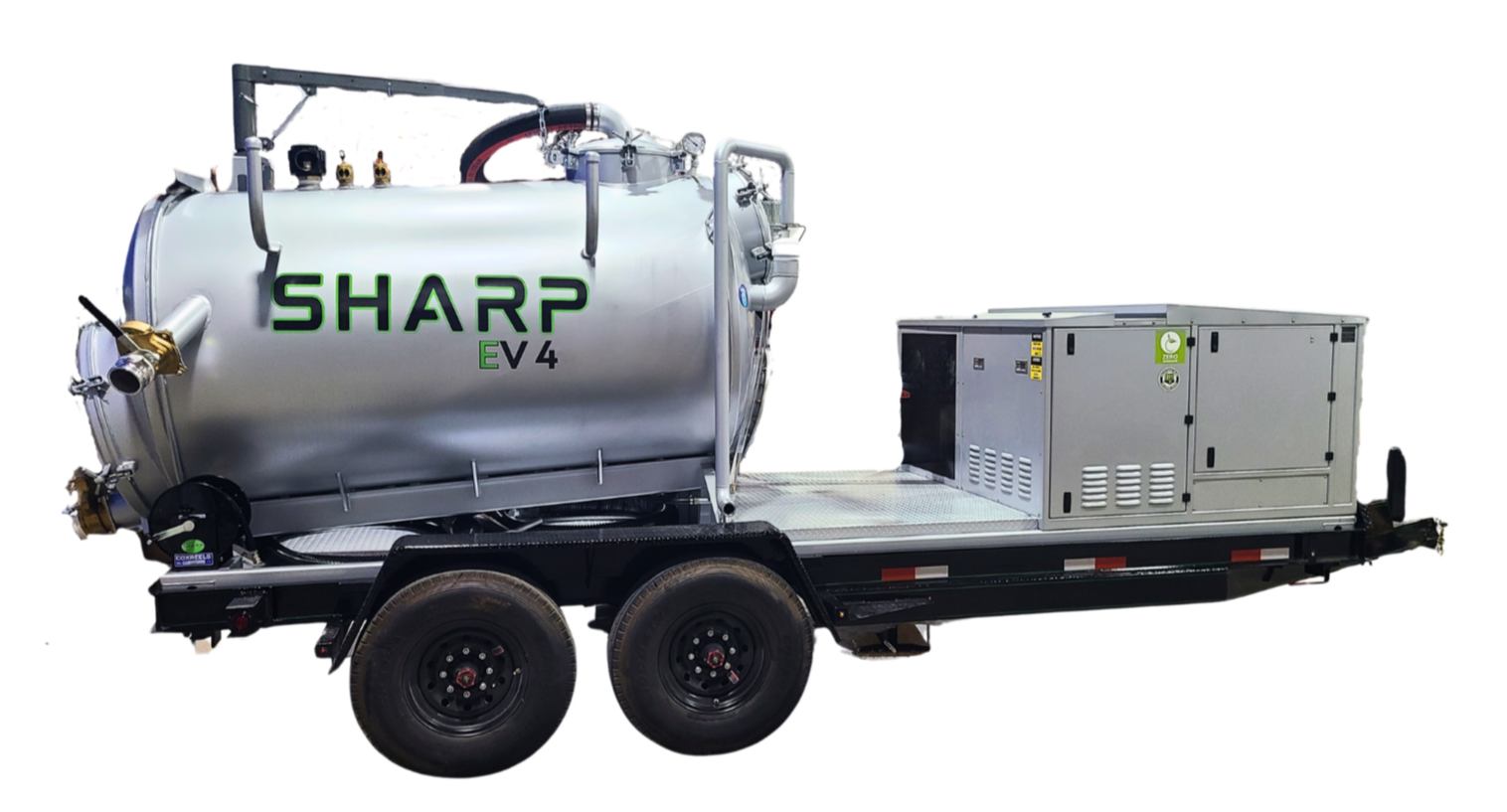

sharp hydrovac ev4 specs

• Trailer unit overall length is 24' long by 8' wide

• Removable Skid is 17' with standard ISO container lock downs, 6' width.

• Twin 8,000 lb. Dexter Torsion Axels. 20,000 lb.

• Pintle hitch with 12 Ply tires on the trailer.

• Overall weight 8,500 lb.

• Storage Capacity: 4 Cubic Yard/800 Gallon Spoils Tank, 2 Cubic Yard/400 Gallon Water Tank. Tank within a tank with sloped design for easy cleanout. 100% Spray in liner on spoils tank and water tank.

• Water Pump: CAT 4 GPM pump with Variable programmable water pressure from 1000 to 3000 psi

• Vacuum/Blower: National Vacuum Equipment, 3 lobe producing 20 inches of mercury regardless of CFM. Blower defaults to 540 CFM, push button on control panel and Remote to achieve 1,000 CFM for 2 minutes at a time.

• Battery: Lithium Iron Phosphate, 4,000 duty cycles: 15 year (After 4000 duty cycles, battery life only decreases 20%)

• Charge Time: 6-8 hrs from 0%

• Charge Temperature: Operational hours: 8-10 hrs on a full charge

• Average DBA: 78.5 when operating.

  • 0.00 DBA when idle.

• Standard Items include:

  • (2) 8' 4-inch mud hoses

  • 5' Standard digging wand with #3 turbo nozzle.

  • 3' Standard wash wand with #3 nozzle.

  • 5' Pot hole/suction tool.

  • Remote Control for Operation

  • Stiff boom and 4" hose guide

  • Work Lights

  • Amber Operation Strobe light

  • J-1772 240V Standard charge cable and connector that plugs into a NEMA 14-50R wall socket, minimum 40 amp breaker.

  • Zero Emissions

  • 2 Year Unlimited Hour Warranty

  • 5 Year Limited Battery Warranty
